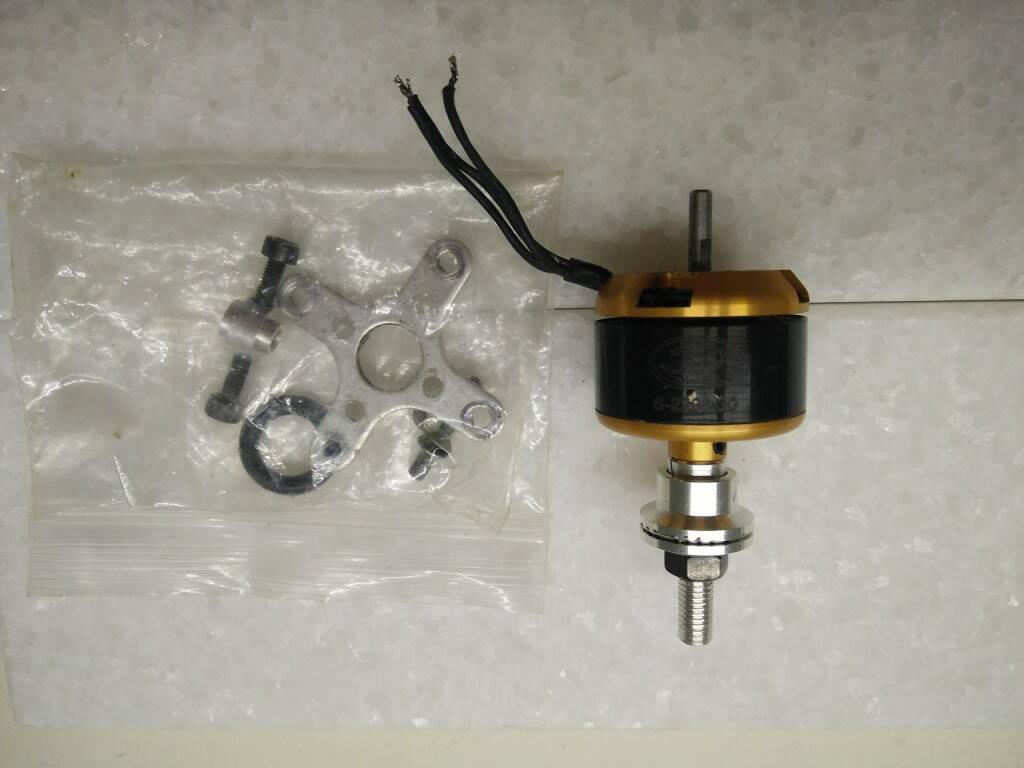

天蠍星Scorpion 2208-30 馬達 含運500

7777

天蠍星Scorpion 2208-30 馬達 含運500

Stator Diameter22.0 mm (0.866 in)Stator Thickness8.0 mm (0.315 in)No. of Stator Arms12No. of Magnet Poles14Motor Wind30 Turn DeltaMotor Wire5-Strand 0.17mmMotor Kv1293 RPM / VoltNo-Load Current (Io)0.55 Amps @ 10 VoltsMotor Resistance (Rm)0.185 OhmsMax Continuous Current14 AmpsMax Continuous Power150 WattsWeight40.3 Grams (1.42 oz)Outside Diameter27.9 mm (1.097 in)Shaft Diameter2.97 mm (0.117 in)Body Length20.6 mm (0.809 in)Overall Shaft Length43.3 mm (1.706 in)
