產品規格：
Brand Name: Eachine

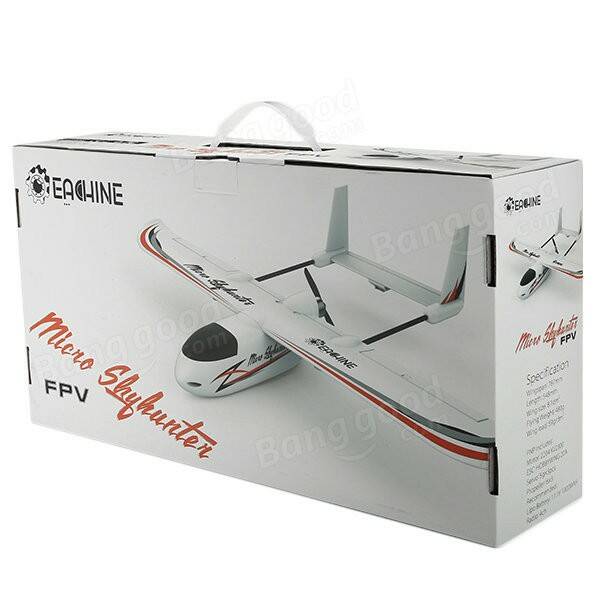

Item Name: Micro Skyhunter
Wingspan: 780mm (31")
Length: 540mm (21")
Weight: 230g (without battery)
Color: White
Material: EPO
CG: 4cm from the wing leading edge(There is a convex point under the wing,that is the CG)
Camera: Eachine EF-01 AIO FPV camera
ESC: 20A 2-3s with XT60 connector
Motor: Eachine 2204 2300KV
Motor MAX Thrust:440g
Motor Weight: 25g
Motor Shaft Diameter: 3mm
Propeller: 6x3, but works well with most 5-6" multirotor props, even quad blade.
Servos: 3x 9 gram
Recommended AUW: Under 375g
Specification Of Eachine EF-01 Camera:
Brand Name
Eachine
Item name
EF-01 AIO FPV Camera
FPV Camera
Sensor: 1/3 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Resolution: NTSC: 960X480/ PAL:960X480
Power consumption: 380mA @ 3.7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Plug: with a new plug,directly supplied power by receiver.
Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
